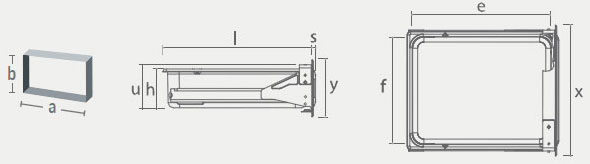

AP2 - MALE FIJOKE

ITEM COUNTER HOLE EXTERNAL AND INTERNAL SIZE BOX
  a(+1) b(+1) x y e f h l u s
AP272 354 140 377 164 401 311 111 431 121 10 3
AP282 354 140 377 164 401 311 111 431 121 10 3
AP2812 354 140 377 164 401 311 111 431 121 10 3
AP292 354 140 377 164 401 311 111 431 121 10 3

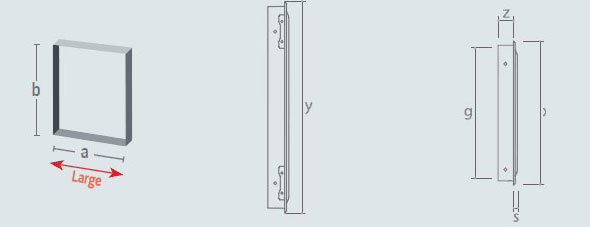

AX1L - VELIKA SINGLE VRATA

ITEM COUNTER HOLE EXTERNAL AND INTERNAL SIZE BOX
  a(+1) b(+1) x y z s *g *gl
AX11L_ 442 305 469 332 50 13 383 405 2
AX12L_ 442 404 469 431 50 13 383 405 2
AX13L_ 442 442 469 469 50 13 383 405 2
AX16L_ 442 502 469 529 50 13 383 405 2
AX17L_ 442 602 469 629 50 13 383 405 2
AX18L_ 442 702 469 729 50 13 383 405 2



LEGENDA
(+1) Suggested tolerance (mm) h3 Depth of the inner container 3rd drawer
x-y Dimensions of the front panel including the frame l Total depth of the item from the counter front
e-f Internal dimensions of the container s External projection from the counter front
*g Useful passage 90° u Useful internal depth
*g1 Useful passage 180° u1 Useful internal depth 1st drawer
h Depth of the inner container u2 Useful internal depth 2nd drawer
h1 Depth of the inner container 1st drawer u3 Useful internal depth 3rd drawer
h2 Depth of the inner container 2nd drawer z Total depth of the frame from the counter front
